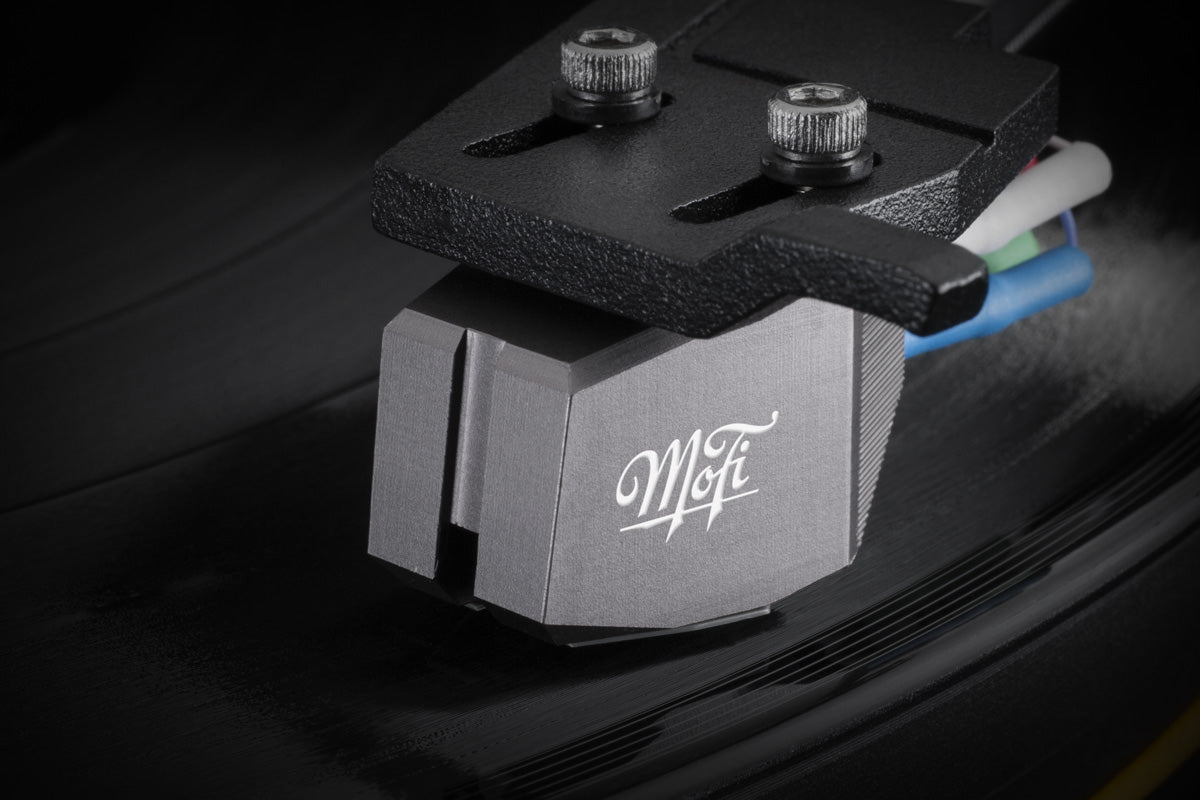

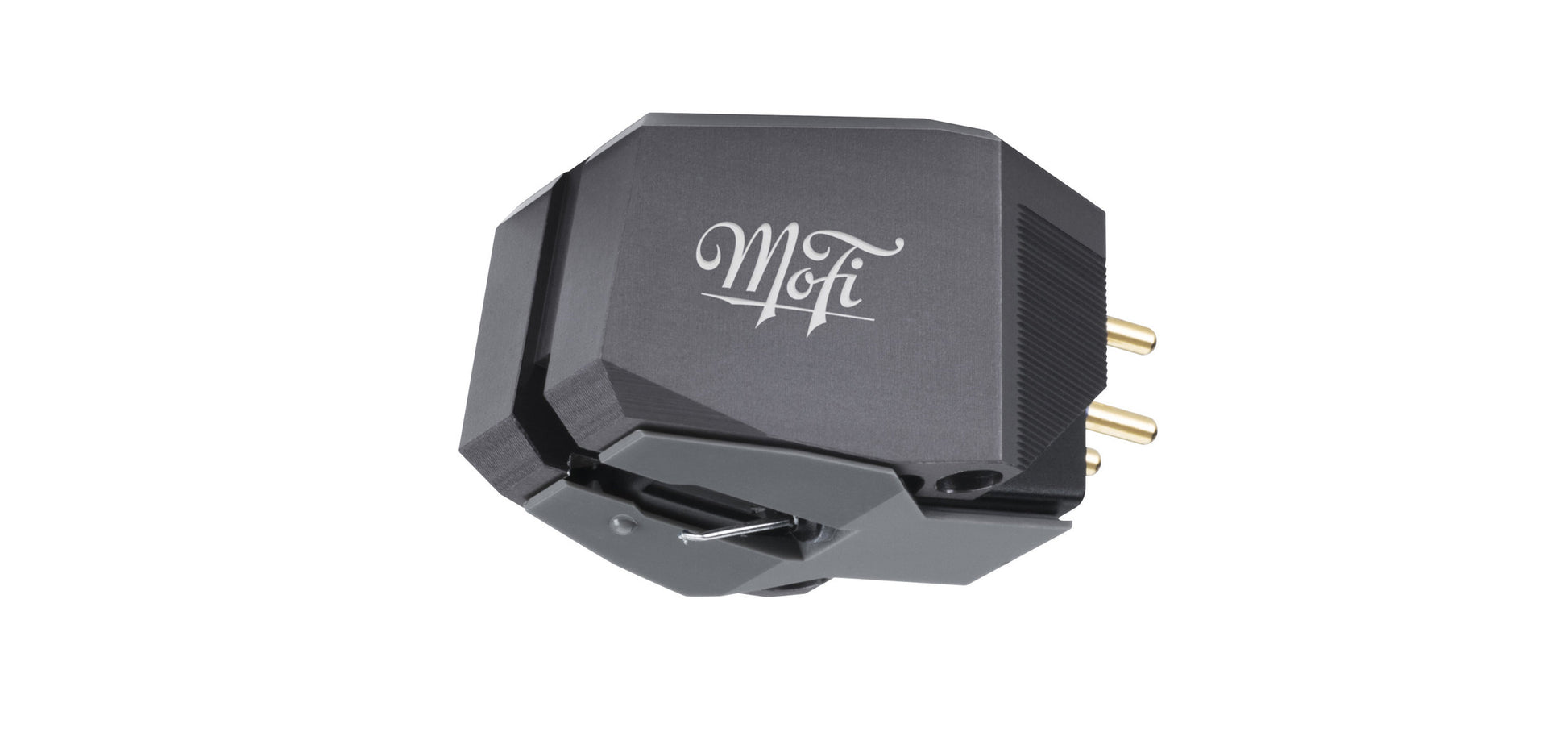

MoFi Electronics / MasterTracker MM

SPECIFICATIONS

Type
Dual Magnet (MM) Stereo

Stylus
Micro-Line

Output Voltage
3mV

Frequency Response
20–25,000Hz

Weight
9.7g

Tracking Force
1.8–2.2g

Impedance
47kOhm

Capacitance
100pF

Compliance
Static compliance :  40 x 10e-6/dyne

Dynamic compliance :  10 x 10e-6/dyne
